IVF Laboratory & Procedure Rooms

What is an IVF Laboratory Setup?

In Vitro Fertilization (IVF) laboratories and procedure rooms are highly specialized, ultra-clean environments designed for assisted reproductive technology (ART). These facilities include embryology labs, andrology labs, oocyte retrieval/embryo transfer procedure rooms (often modular clean OTs), and cryopreservation areas. The primary goal is to provide optimal, contaminant-free conditions for gametes (eggs/sperm) and embryos to maximize fertilization, embryo development, and successful implantation rates.

IVF labs require strict cleanroom standards (typically ISO Class 5–7), advanced HVAC with HEPA filtration and VOC control, positive pressure differentials, temperature/humidity precision, and specialized equipment like incubators, micromanipulators, and laminar flow hoods. Modular designs allow rapid, customizable installation in hospitals or standalone fertility centers.

Modern IVF embryology lab with micromanipulation stations and clean benches

State-of-the-art IVF cleanroom lab with stainless steel surfaces and advanced equipment

Embryologist working at ICSI micromanipulation workstation in IVF lab

Key Benefits of Advanced IVF Laboratory Setups

Optimal Embryo Protection — Ultra-clean air (HEPA + VOC filtration) minimizes particulates, microbes, and volatile organic compounds that can impair embryo development.
High Success Rates — Precise environmental control (temperature 37°C ±0.2°C, humidity, gas levels) improves fertilization, cleavage, and implantation outcomes.
Contamination Control — Positive pressure cascades, laminar airflow, and modular antimicrobial surfaces prevent cross-contamination between areas.
Rapid & Flexible Installation — Modular cleanroom panels and prefabricated systems enable quick setup or expansion with minimal hospital disruption.
Regulatory Compliance — Meets ISO 14644, GMP, and ART guidelines for particle counts, air changes (15–25+ ACH), and pressure differentials (10–50 Pa positive).
Integrated Workflow — Adjacent procedure rooms (for egg retrieval/embryo transfer) with pass-throughs ensure seamless gamete/embryo handling.

Contemporary IVF lab setup with time-lapse incubators and micromanipulators

ICSI micromanipulation system with stereo microscopes

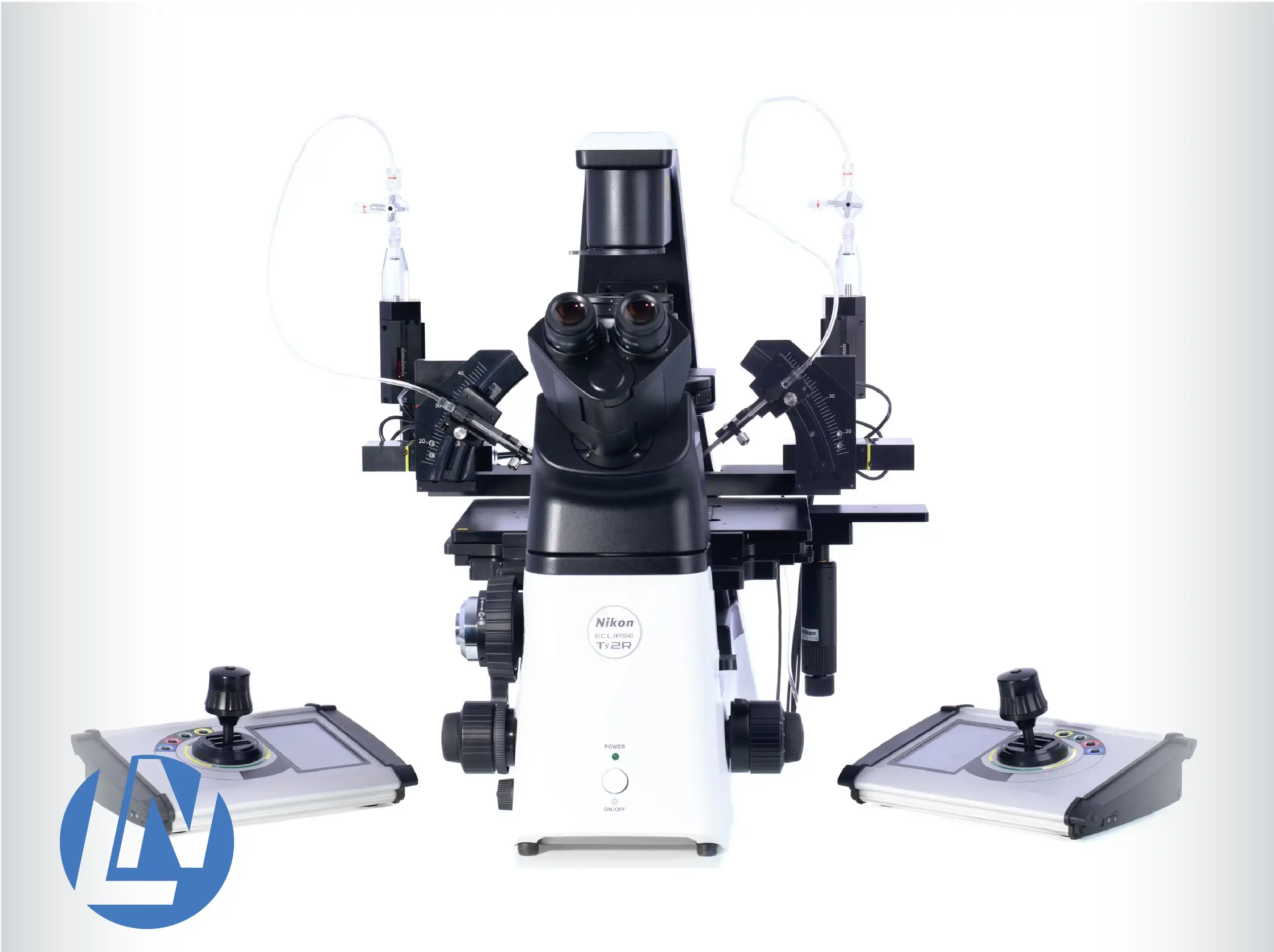

Motorized ICSI micromanipulator workstation for precise embryo injection

Core Features of IVF Laboratories & Procedure Rooms

Feature	Description
Cleanroom Classification	ISO Class 5–7 (often ISO 6 for main lab, ISO 5 at critical workstations); <10,000 particles ≥0.5μm/m³
HVAC & Air Quality	HEPA/ULPA filtration, VOC removal (carbon/KMnO₄), 15–25+ ACH, positive pressure 10–50 Pa cascade
Temperature & Humidity	Room: 22–26°C, <50% RH; Critical surfaces/incubators: 37±0.2°C
Procedure Room (OT)	Modular clean OT for oocyte retrieval & embryo transfer; laminar flow, LED lights, OT table compatibility
Key Equipment	Time-lapse incubators, laminar flow hoods, inverted/ICSI microscopes, micromanipulators, cryopreservation tanks
Workstations	Anti-vibration tables, heated stages, stereo/inverted microscopes, ICSI/IMSI systems
Monitoring & Safety	Particle counters, VOC sensors, continuous temp/gas alarms, emergency power backup
Modular Design	Prefabricated antimicrobial panels, seamless flooring, pass-through windows to procedure areas
